Description

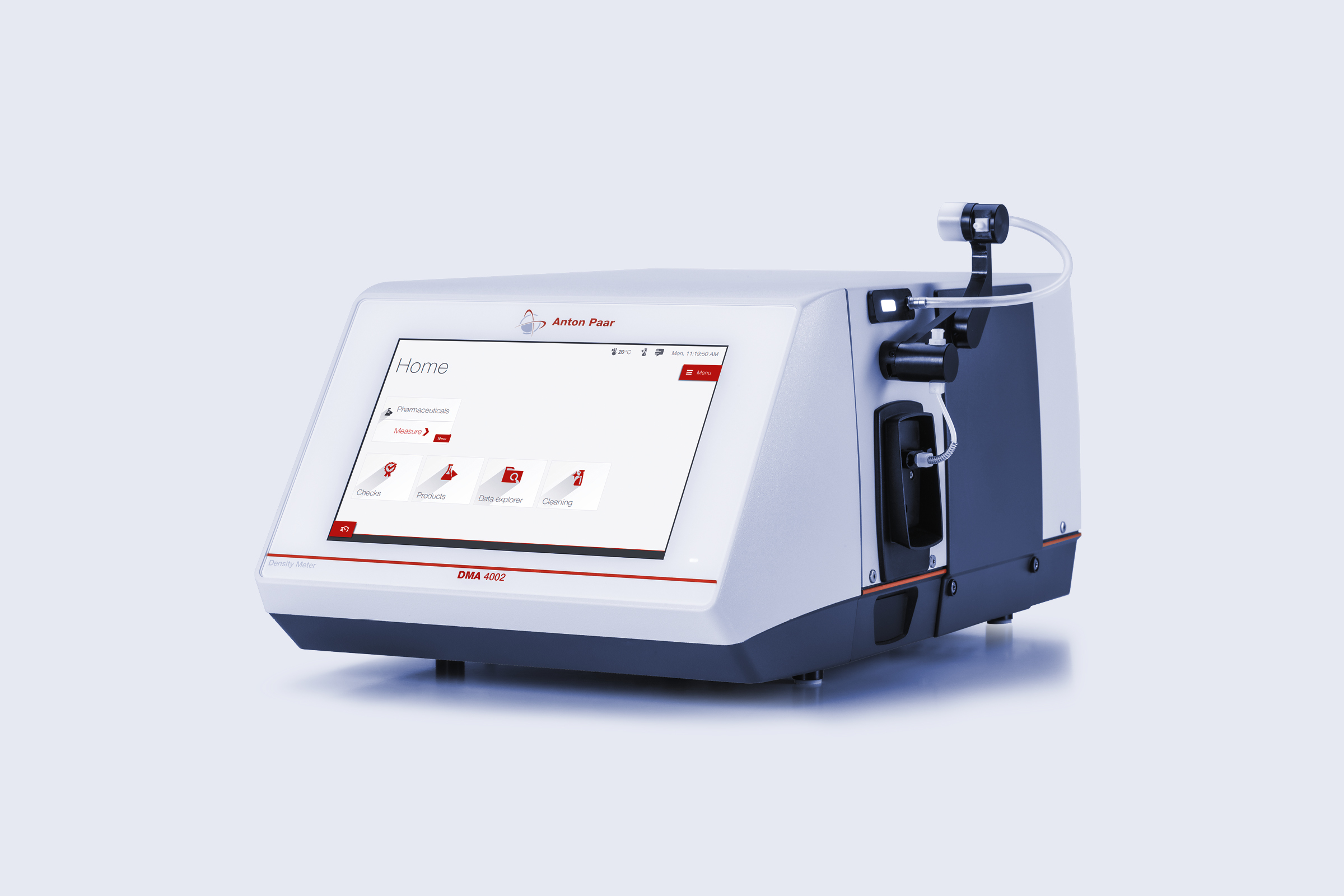

Inspired by over 55 years of expertise in benchtop density measurement, the DMA 4002, DMA 5002, and DMA 6002 modular benchtop density meters combine automated functions with unmatched precision and reliability. As the fastest, most modular benchtop density meters in Anton Paar’s portfolio, they deliver four-digit results in just 20 seconds – powered by U-Pulse technology based on the patented Pulsed Excitation Method for best-in-class accuracy. The instruments offer storage of up to 10,000 measurements and deliver accuracy up to six digits. Daily operations are simplified with features such as U-Dry, one-touch measurement, and a measurement status light, while compliance with a wide range of standards ensures peace of mind. The DMA: always superior.
key features
Outstanding features that simplify workflows
- One-touch measurement: Measurement at the push of a button
- U-Dry: Effortless hand-swipe measurement drying
- FillingCheck: Detection of microbubbles in seconds
- U-View: Zoomable image of the measuring cell
- ThermoBalance: Automatic compensation of temperature effects
- Guided user workflows for simplified operation
Unmatched precision, powered by U-Pulse technology
U-Pulse, based on Anton Paar’s patented Pulsed Excitation Method delivers best-in-class performance – with outstanding precision, repeatability, and reproducibility, whether in high-precision R&D or routine quality control.
Multiparameter measurement systems
The DMA 4002, DMA 5002, and DMA 6002 modular benchtop density meters can be connected to a variety of Anton Paar measuring modules, enabling users to capture all key quality control parameters from a single sample – under identical conditions.
Automation that drives productivity
Fully automated filling, measuring, and cleaning processes take throughput to the next level. Every Anton Paar benchtop density meter is compatible with a wide range of sample changers, enabling tailored setups for maximum speed and reliability. The instruments ensure accurate, operator-independent results while protecting users by minimizing contact with hazardous substances – all while keeping workflows in motion.
Compliance with key standards
The DMA 4002, DMA 5002, and DMA 6002 modular benchtop density meters ensure full compliance with ASTM D4052, D5002, D1250, and ISO 12185 for petroleum testing, as well as all relevant pharmacopeias. They also support data integrity and traceability in line with regulations such as 21 CFR Part 11. Measurements are traceable to the International System of Units (SI) with ISO 17025-accredited calibrations from Anton Paar’s certified laboratory, and top calibration accuracy is maintained using ISO 17034-certified density reference materials.
Specifications
| DMA 4002 | DMA 5002 | DMA 6002 | |
|---|---|---|---|
| Patents | AT 516420 B1 | ||
| Measuring range | |||
| Density | 0 g/cm³ to 3 g/cm³ | ||
| Temperature | 0 °C to 100 °C (32 °F to 212 °F) | ||
| Pressure | Up to 10 bar (145 psi) absolute pressure | ||
| Accuracy* | |||
| Density | 0.00005 g/cm³ | 0.00001 g/cm³ (0 g/cm³ to 1.05 g/cm³, 15 °C to 20 °C) 0.00005 g/cm³ (full range) |
0.000005 g/cm³ |
| Temperature | 0.02 °C (0.04 °F) | 0.01 °C (0.02 °F) (15 °C to 20 °C) 0.015 °C (0.03 °F) (full range) |
0.01 °C (0.02 °F) |
| Repeatability s.d.** | |||
| Density | 0.00001 g/cm³ | 0.000003 g/cm³ | 0.000001 g/cm³ |
| Temperature | 0.02 °C (0.04 °F) | 0.005 °C (0.01 °F) | 0.001 °C (0.002 °F) |
| Reproducibility s.d.** | |||
| Density | 0.00005 g/cm³ | 0.000005 g/cm³ | 0.000005 g/cm³ |
| Digital resolution | |||
| Density | 0.00001 g/cm³ | 0.000005 g/cm³ | 0.000001 g/cm³ |
| Features | |||
| Power features | U-Dry, U-View, U-Pulse, FillingCheck, Status Light, Syringe Illumination, ThermoBalance, Full-range viscosity correction | ||
| Special functions | Temperature scan, built-in ambient pressure sensor, condition monitoring | ||
| Filling options | Automatic sample changers | ||
| Modularity | Alcohol, pH, color, turbidity, viscosity, refractive index, optical rotation, CO₂, O₂ | ||
| Upgrades and calibrations | Printers, ISO calibration, AP Connect lab execution software | ||
| Integrated tables and functions | Density, specific gravity (SG), alcohol tables, sugar/extract tables, various acid/base tables, API functions | ||
| Technical data | |||
| Ambient temperature | 15 °C to 35 °C (59 °F to 95 °F) | ||
| Typical measuring time/sample | 20 s | 30 s | 40 s |
| Minimum sample volume | Approx. 1 mL | ||
| Wetted materials | Borosilicate glass, PTFE, ETFE | ||
| Dimensions (L x W x H) | 526 mm x 347 mm x 230 mm (20.7 in x 13.7 in x 9 in) | ||
| Weight | 22.04 kg (48.6 lbs) | ||
| Power supply | AC 100 to 240 V, 50/60 Hz, fluctuation ± 10 %, 190 VA | ||
| Display | 10.1″ TFT WXGA (1280 x 800 px); PCAP touchscreen | ||
| Controls | Touchscreen, optional keyboard, mouse, and barcode reader | ||
| Communication interfaces | 4 x USB, Ethernet, CAN, RS232 | ||
| Internal storage | 10,000 measuring values including camera images | ||
* According to ISO 5725
** Under ideal conditions and for low viscosities
